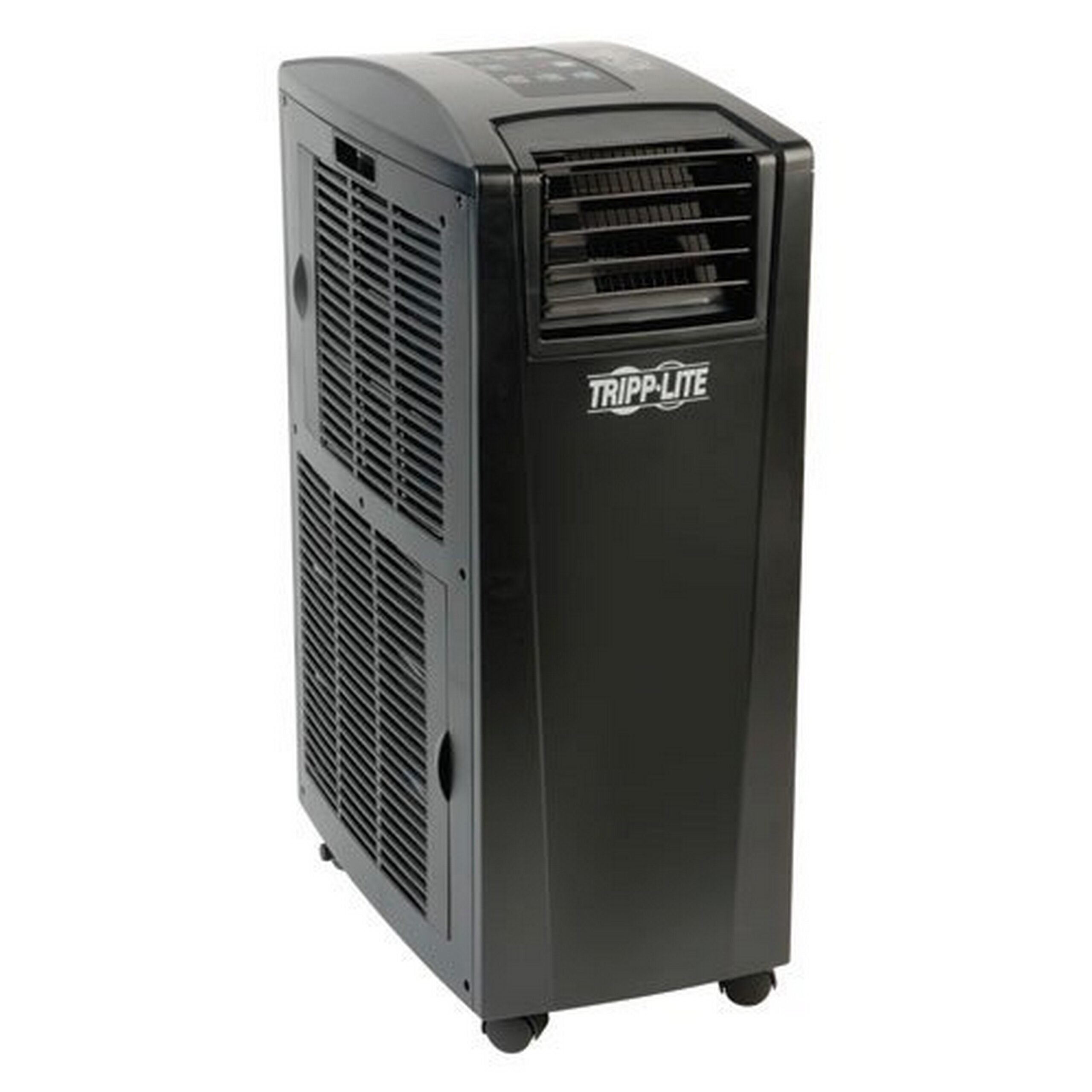

Tripp-Lite SRCOOL12K Portable Server Rack Cooling Unit, Gen 2 Upgrade, 12,000 BTU

Tripp Lite SRCOOL12K Portable Server Rack Cooling Unit, Gen 2 Upgrade, 12,000 BTU

With 12,000BTU of cooling power, the 120V, 60 Hz SRCOOL12K is ideal for use in data centers, server and wiring closets, IT environments, home and small business offices, conference rooms, warehouses, entertainment centers or other venues with heat-sensitive equipment, particularly in areas that facility air conditioning can’t reach. The SRCOOL12K not only adjusts ambient room temperatures, but can also dehumidify and filter the air, providing better air quality for enhanced equipment performance with minimal noise and power consumption.

Key Features

• 12,000 BTU of cooling power can cool a 500 square foot room
• Uses environmentally friendly R410a refrigerant (Contains no ozone depleting R22 refrigerant which has been banned by the U.S. EPA in new equipment after January 1, 2010)
• No water collection tank required. A built-in evaporator expels condensate into the exhaust air stream meaning no drain tube, drain pan or water collection tank that needs to be emptied every few hours
• Cold air output can be precisely directed through a 71″ flexible tube to the ‘hot spot’ for better, faster cooling. (Standard louvered insert is also included for general room cooling)
• Auto-restart feature retains all system settings and returns the unit back to its last operational state after AC power is restored
• Communication port allows users to remotely monitor and control temperatures, alerts, logs and settings from any location with an Internet connection (requires SRCOOLNET accessory)
• Compact, portable, self-contained design; ideal for IT, industrial, commercial and similar applications
• Quick and easy installation. Plugs into a standard 5-15R outlet; no adapter required
• Window/drop ceiling installation kit is included for extracting heat
• Offers 3 different cycles (cool, dehumidify and fan)
• Cools in confined spaces where facility air conditioning can’t reach
• Dehumidifies and filters air to promote more efficient equipment performance
• Built-in timer for automatic unattended start-up and shutdown
• System lock function disables all other buttons to prevent accidental input
• Quiet operation with minimal power consumption
• Convenient top-mounted controls and displays
• 120V AC input, 60 Hz frequency compatibility

Technical Specifications

Model Type
Active Cooling
INPUT
Nominal Input Voltage(s) Supported
120V AC
Electrical Consumption
1250 Watts Max
Input Connection Type
NEMA 5-15P
Input Cord Length (ft.)
6
Input Cord Length (m)
1.83
PHYSICAL
Shipping Dimensions (hwd / in.)
33.46 x 15.16 x 29.13
Shipping Dimensions (hwd / cm)
85 x 38.5 x 74
Shipping Weight (lbs.)
83
Shipping Weight (kg)
37.65
Unit Dimensions (hwd / in.)
30.63 x 11.81 x 19.88
Unit Dimensions (hwd / cm)
77.8 x 30 x 50.5
Unit Weight (lbs.)
73.9
Unit Weight (kg)
33.5
Material of Construction
ABS
Color
Black
Form Factors Supported
Tower
ENVIRONMENTAL
Cooling Capacity
12,000 BTU / 3.5 kW
Dehumidifier
2.5lbs / hour
Compressor Type
Rotary
Refrigerant
R410a (Environmentally friendly, Non ozone depleting)
Refrigerant Amount
22 oz.
Air Flow
Evaporator = 329 CFM / Condenser = 311 CFM
Amp Draw Nominal
10.5A
Sound Level (Noise)
57dB
Air Supply Tube Length
71 inches
Air Exhaust Tube Length
118 inches
Air Exhaust Tube Diameter
5.16 inches
