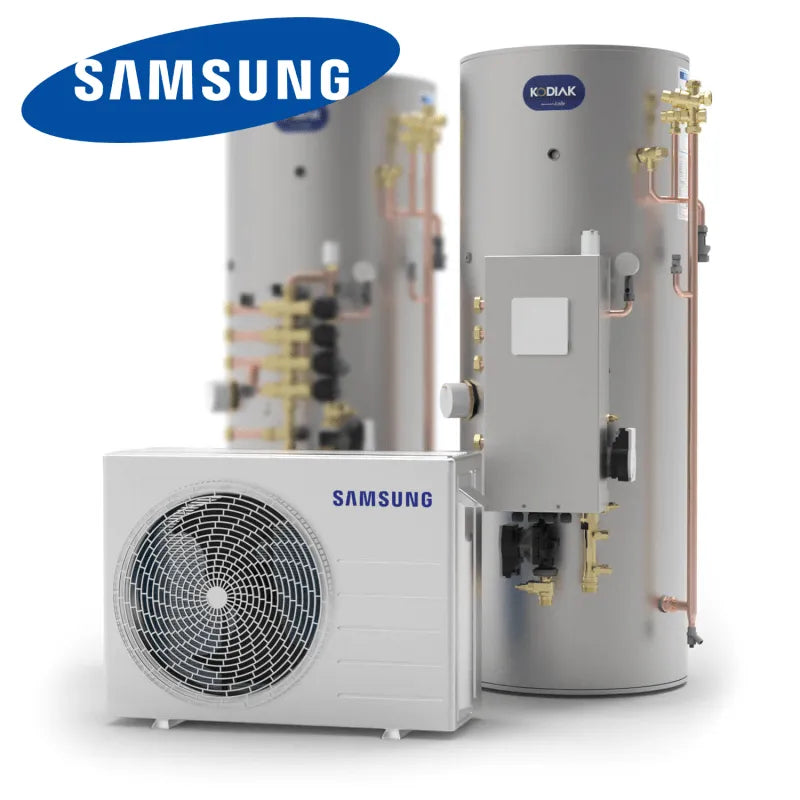

Samsung, a global leader renowned for its innovation and quality, is proud to offer its Air Source Heat Pump – a product that has redefined industry standards. Since its debut in 2011, Samsung has swiftly established itself as a formidable player in the heat pump market, addressing the challenges faced by earlier models with cutting-edge solutions.
The Samsung Air Source Heat Pump integrates advanced technology, making installation and commissioning exceptionally straightforward. Its lightweight design simplifies the installation process, while tailored commissioning information ensures optimal performance. Samsung’s dedication to excellence is further evidenced by their unmatched training and technical support, which stands out in the industry.
When it comes to value, Samsung’s air source heat pumps are both competitive and cost-effective, making them a top choice for large-scale installations. Discover why Samsung is the go-to brand for high-efficiency, reliable air source heat pumps.
Delivery Times
Samsung heat pumps are shipped with a delivery time of 3–7 days within England and Wales. For remote areas in Scotland, delivery may take up to 10 working days. For more detailed delivery information, please contact our team.
Included Accessories for Heat Pump Only:
- Mono Control Centre
- Anti-Vibration Foot Kit (600mm)
- Insulated Flex Conn Pipes Elbow (28mm x 300mm)
- Concentrate HP Fluid (20L)
- 1” Y Pattern Strainer with Isolation
- Red Isolation Valve (28mm) x2
- Circulating Pump x2
- 2 Port Motorised Valve (28mm) x2
- Combined Fill Flush & Flow Meter
- Robokit Sealed System Kit
Included Accessories for Heat Pump and Cylinder:
- Anti-Vibration Foot Kit (600mm)
- Insulated Flex Conn Pipes Elbow (28mm x 300mm)
- Concentrate HP Fluid (20L)
- 1” Y Pattern Strainer with Isolation
- Red Isolation Valve (28mm) x2
- Robokit Sealed System Kit
Features & Benefits
Discover what makes Samsung Air Source Heat Pumps exceptional:
- Comprehensive solution offering heating, hot water, and air conditioning
- Highly energy-efficient with variable-speed compressors and inverter-driven systems
- Reliable all-weather performance, even in extreme temperatures
- Smart controls and connectivity for convenient remote monitoring and management
- Quiet operation for minimal noise impact
- Advanced air purification and filtration for cleaner indoor air
- Environmentally friendly, reducing your carbon footprint
Cylinder Sizes
| Wattage | Tank Size (L) | Buffer Tank (L) |
|---|---|---|
| 5kW | 180 | 60 |
| 9kW | 200 | 60 |
| 12kW | 250 | 90 |
| 16kW | 300 | 90 |
Specifications
| RC090 | RC160 | ||
|---|---|---|---|
| Power Supply | Phase | Single | Single |
| Volts | 220 – 240 | 220 – 240 | |
| Hertz | 50 | 50 | |
| Nominal Condition Air 7°C Flow 30/35°C | Heating Output (kW) | 9 | 16 |
| Electrical Input (kW) | 2.09 | 3.81 | |
| COP | 4.3 | 4.2 | |
| Performance Air 7°C Flow 40/45°C | Heating Output (kW) | 8.4 | 15.1 |
| Electrical Input (kW) | 2.51 | 4.58 | |
| COP | 3.35 | 3.3 | |
| Performance Air -7°C Flow 30/35°C | Heating Output (kW) | 7.54 | 12.28 |
| Electrical Input (kW) | 3.35 | 5.64 | |
| COP | 2.25 | 2.18 | |
| Performance Air -7°C Flow 40/45°C | Heating Output (kW) | 7.59 | 12.01 |
| Electrical Input (kW) | 3.86 | 6.08 | |
| COP | 1.97 | 1.98 | |
| Water Side | Heat Exchanger | Brazed Plate Heat Exchanger | |
| Required Water Pressure (bar) | 2.8 | 2.8 | |
| Nominal Water Flow Rate (l/min) | 20 | 30 | |
| Minimum Water Volume (l) | 20 | 20 | |
| Pressure Drop at Heat Ex (kPa) | 10 | 15 | |
| Pipe Connection | 1 Male | 1 Male | |
| Fan Info | Quantity | 1 | 2 |
| Airflow Rate (m³/min) | 50 | 100 | |
| Output Power (W) | 8.4 | 14.9 | |
| Refrigerant Side | Compressor Type | Rotary Inverter | |
| Oil | POE | ||
| Compressor Power (kW) | 2.51 | 4.6 | |
| Refrigerant Type | R410A | ||
| Refrigerant Factory Charge (g) | 1.4 | 2.2 | |
| Electrical Info | Running Current (A) | 17.4 (max) | 30 (max) |
| Starting Current (A) | 2 | 2 | |
| Recommended Fuse (A) | 20 | 32 | |
| Sound Info | Sound Pressure Level (dBA) | 50 | 53 |
| Sound Power Level | 66 | 70 | |
| Dimensions | Height (mm) | 998 | 1420 |
| Depth (mm) | 330 | 330 | |
| Width (mm) | 940 | 940 | |
| Weight (kg) | 75 | 103 | |
| Operating Range | Ambient / A2W (°C) | -20 to 35 | |
| Leaving Water (°C) | 25 to 55 | ||
Experience the future of home climate control with Samsung’s Air Source Heat Pump—a blend of innovation, efficiency, and reliability.
