ADJ PIXIE STRIP 30 0.5-Meter Indoor LED Pixel Strip

ADJ PIXIE STRIP 30 0.5-Meter Indoor LED Pixel Strip

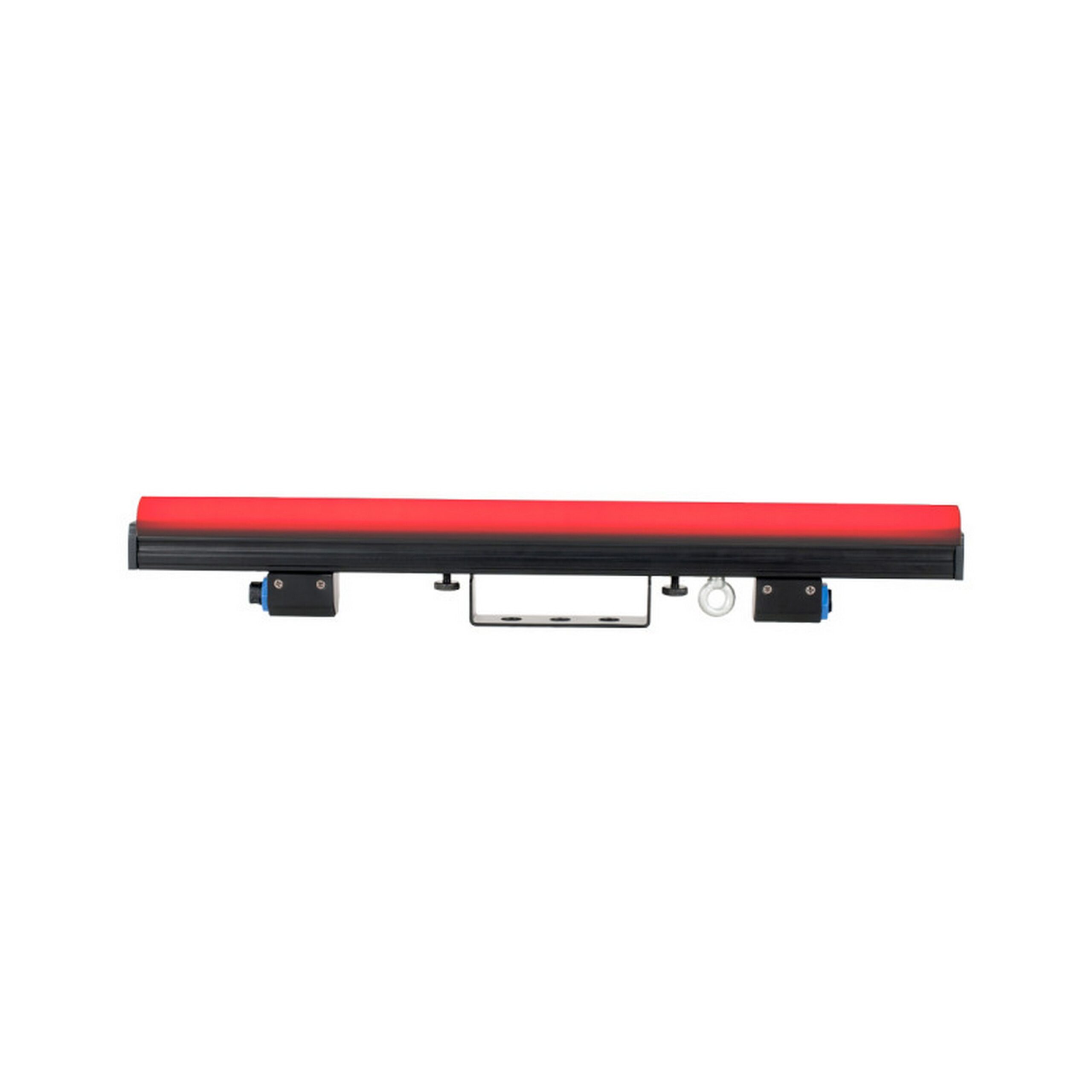

The PIXEL STRIP 30 is a 0.5 meter, indoor LED pixel strip featuring (30) tri-color RGB SMD LEDs with a 16.5mm pixel pitch, a refresh rate of 44,000Hz for flicker free operation for broadcast TV and FILM applications, and measures 1 meter (1.64 feet) in length. Each pixel strip is housed in a lightweight aluminum housing featuring magnetic end caps which allow seamless end-to-end pixel spacing, an integrated adjustable mounting bracket, a safety cable loop, and includes square and rounded frosted lens attachments.

Technical Specifications

SOURCE
SMD RGB 3-in-1 LED’s
Color Resolution: 8 bits per color (24 bit per pixel)
Viewing Angle: 120 x 120 degrees
Pixels Per Meter: 60 pixels
Pixel Pitch (pixel center-to-center) 16.5mm
PWM (Pulse Width Modulation): 44,000Hz
CONNECTIONS
4pin Power/Data In/Out
SIZE / WEIGHT
Length: 19.7” (500mm)
Width: 1.26” (32mm)
Height: 2.64” (67mm)
Weight: 1.54 lbs. (0.7kg)
ELECTRICAL
Max Power Consumption: 6W
APPROVALS
CE | cETLus
