ADJ PIXIE STRIP 120 2-Meter Indoor LED Pixel Strip

ADJ PIXIE STRIP 120 2-Meter Indoor LED Pixel Strip

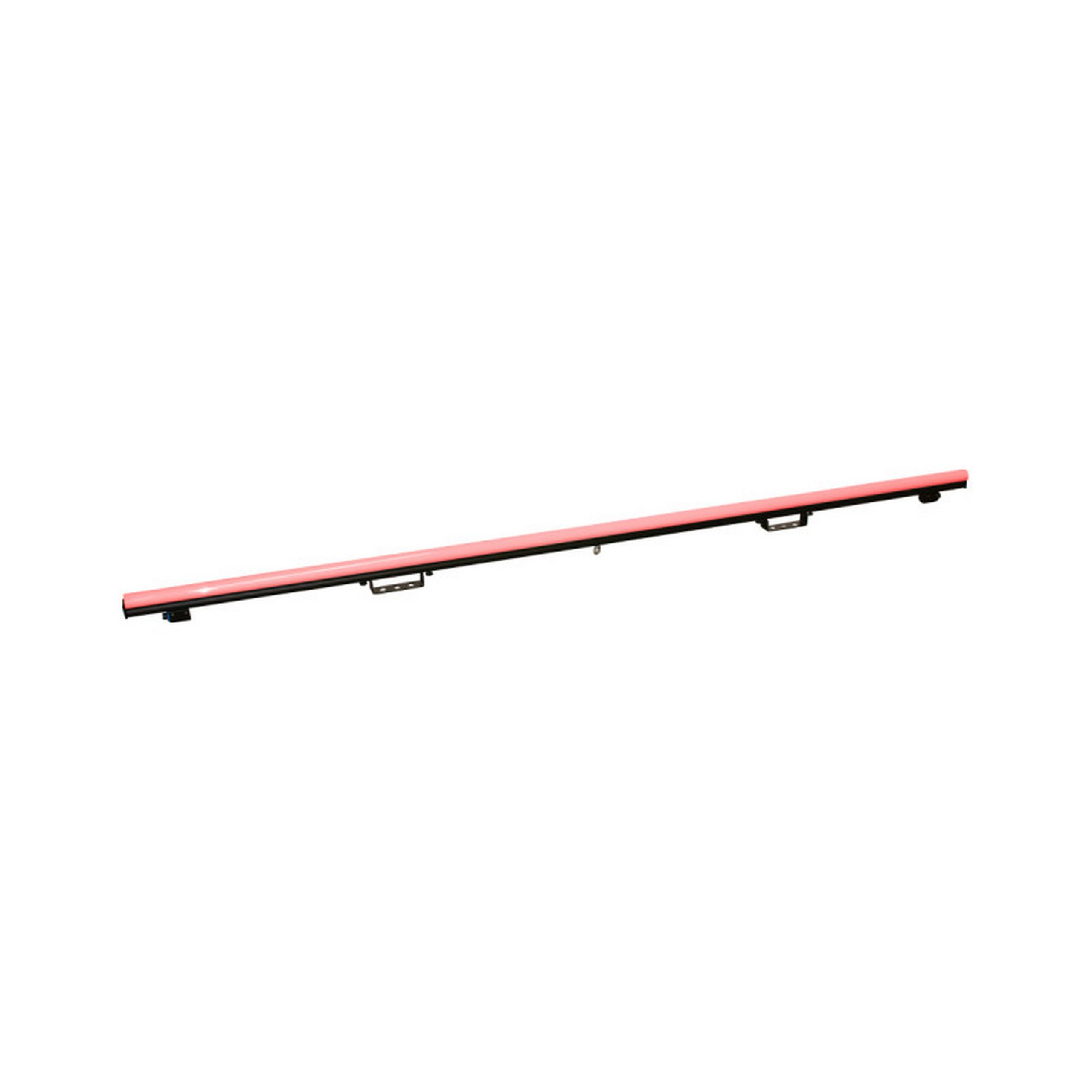

The PIXEL STRIP 120 is a 2 meter, indoor LED pixel strip featuring (120) tri-color RGB SMD LEDs with a 16.5mm pixel pitch, a refresh rate of 44,000Hz for flicker free operation for broadcast TV and FILM applications, and measures 2 meter (6.6 feet) in length. Each pixel strip is housed in a lightweight aluminum housing featuring magnetic end caps which allow seamless end-to-end pixel spacing, an integrated adjustable mounting bracket, a safety cable loop, and includes square and rounded frosted lens attachments.

Easy and versatile control options are handled by the Pixie Driver 2000 (sold separately) which provides simple on-board manual dimming and strobe control, and full pixel mapping control of 2,040 max pixels via Kling-Net and 340 max pixels via Art-Net and sACN (streaming ACN) protocols. Power and data are supplied via proprietary, 4pin combo cables (sold separately) which are available in lengths from 1 to 50 feet.

Technical Specifications

SOURCE
SMD RGB 3-in-1 LED’s
Color Resolution: 8 bits per color (24 bit per pixel)
Viewing Angle: 120 x 120 degrees
Pixels Per Meter: 60 pixels
Pixel Pitch (pixel center-to-center) 16.5mm
PWM (Pulse Width Modulation): 44,000Hz
CONNECTIONS
4pin Power/Data In/Out
SIZE / WEIGHT
Length: 78.8” (2000mm)
Width: 1.26” (32mm)
Height: 2.64” (67mm)
Weight: 4.6 lbs. (2.1kg)
ELECTRICAL
Max Power Consumption: 24W
APPROVALS
CE | cETLus
